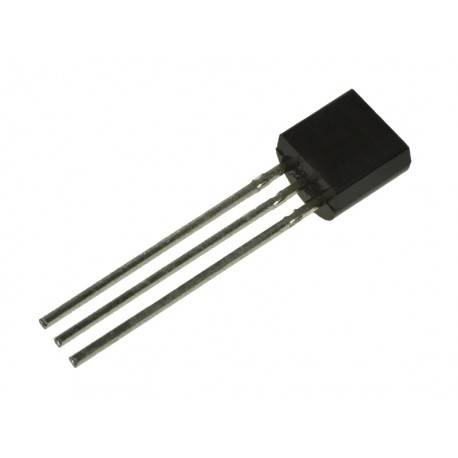

Z0103MA Triak 600V; 1A; Igt=3mA; TO92

Charakterystyka:

Opis

• TRIAC, 0.8A, 600V, TO-92
• Peak Repetitive Off-State Voltage, Vdrm:600V
• On State RMS Current IT(rms):0.8A
• Peak Non Rep Surge Current Itsm 50Hz:8A
• Holding Current Max Ih:7mA
• Gate Trigger Voltage Max Vgt:1.5V
• Peak Gate Power:1W
• Operating Temperature Range:-40°C to +125°C
• Thyristor Case:TO-92
• No. of Pins:3
• SVHC:No SVHC (15-Dec-2010)
• Current Itsm:8.0A
• Package / Case:TO-92
• Current Itsm @ 60Hz:8.5A
• Current t2+g-:3mA
• Current t2-g+:5mA
• Current t2-g-:3mA
• Device Marking:Z0103MA
• Gate Trigger Current Igt (Q1) t2+g+:3mA
• Gate Trigger Current Max, Igt:3mA
• Repetitive Reverse Voltage Vrrm Max:600V
• Termination Type:Through Hole
